Pacific Arc Template -Ames Universal Lettering Guide

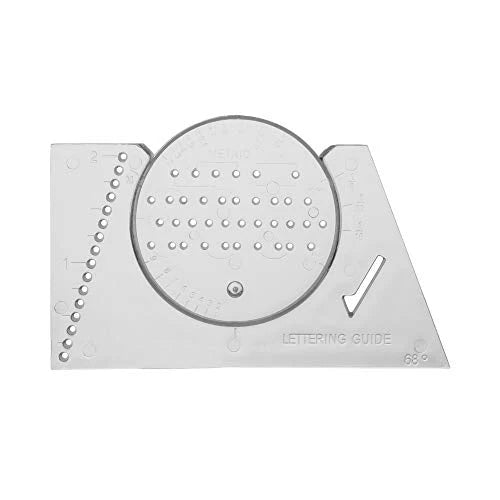

Pacific Arc Ames Lettering Guide

The Pacific Arc Ames Lettering Guide is a classic drafting tool designed for creating clean, consistent lettering and layout lines. Simple to use and highly adaptable, it’s a staple for anyone working in technical drawing, architecture, or structured design work.

This guide allows you to quickly establish evenly spaced guidelines for lettering from 1/16” up to 1.5” in height, helping maintain uniform proportions and alignment across your work. It also supports multiple standard lettering styles commonly used in drafting.

Beyond lettering, it can be used for layout tasks like cross-sectioning, patterns, and parallel line work—making it a versatile addition to any drafting kit.

Made from transparent plastic for easy alignment, it’s built for repeatable accuracy whether you’re in the classroom, studio, or field.
